SIMATIC IPC1047E (rack PC, 19", 4 U); 2x Gbit Ethernet, IPMI, RJ45; 1x VGA, 1x COM 1, 2x USB 3.0, 2x USB on the rear side; 2x USB 3.0 front; temperature and fan monitoring; SW RAID onboard;

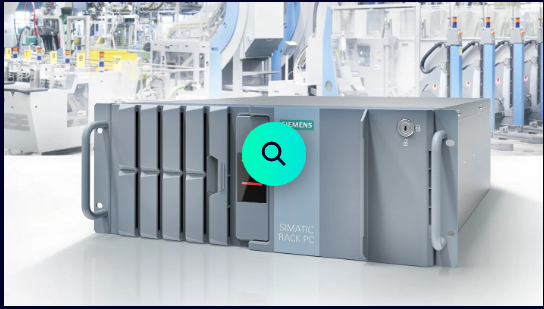

SIMATIC IPC1047E

Industrial PC for maximum computing, memory and graphic capacity requirements with high expandability in 19" installation design (4 U).

It offers:

Maximum CPU performance thanks to two Intel? Xeon? SP 2nd Gen Silver/ Gold

Maximum GPU performance with NVIDIA? Quadro? RTX5000 or up to two RTX4000 graphics cards

High system performance with M.2 NVME SSD and up to 2 TB RAM

A lot of space for your data with up to 32 TB HDD or SSD

High AI performance with NVIDIA? Quadro? RTX5000 or up to two RTX4000 graphics cards

High expandability with 6x PCIe slots and fast data transfer through direct CPU connection of the PCIe lanes

Product design and safety requirements for industrial environment

Benefits

Highest industrial compatibility for 24/7 continuous use in an industrial environment

Product design for up to 50 °C ambient temperature

All-metal housing with high EMC for use in industrial environments

Dust protection thanks to overpressure ventilation concept with fan on the front and dust filter

Securing of the replaceable components at the front (e.g. USB software dongle, drives) against unauthorized access by means of a lockable door

Locked fan cover: Filter mat and front fan can only be replaced when front door is open

Enclosure cover can only be opened when the front door is open

Security by default

Securing of the replaceable components at the front (e.g. USB software dongle, drives) against unauthorized access by means of a lockable door

Locked fan cover: Filter mat and front fan can only be replaced when front door is open

Enclosure cover can only be opened when the front door is open

Security settings active from delivery state, e.g. passwords, ports, interfaces

Maximum performance in plant environment

Two Intel? Xeon? SP Gold/ Silver 2nd generation processors with up to 40 CPU cores

Supports hyper-threading and virtualization technology

Up to two NVIDIA? Quadro? RTX4000 High End graphics cards for maximum graphic, computing and AI capacities

Maximum performance with up to 2 TB DDR4 EEC - work memory

High data transfer rates with PCI Express 3.0, USB 3.0, SATA3 (6 Gbps), Gigabit LAN

High expandability with 6x PCIe cards (2x PCIe x8 and 4x PCIe x16 lanes)

Large data memory 8x SSDs or 4x HDDs (up to 32 TB memory space)

Fast data access with solid state drive (SSD) and M.2 NVMe (5x faster than SSD)

High performance for customer requirements with 860 W power supply unit

Minimization of downtimes thanks to high system availability

Secured 24-hour operation (high MTBF, variable-speed fan) at ambient temperature up to 50 °C

High data security due to powerful RAID controller hardware

Status display (front LEDs) for voltage, HDD access and alarm display for fan

Remote control and remote maintenance via IPMI 2.0 (Intelligent Platform Management Interface)

Redundant AC power supply with "hot swap" functionality (replacement of power supply module during operation), optional

Redundant Gbit LAN connections

Service-friendly device design (modifications, service), e.g. filter replacement without the need for tools

Cost reductions through high investment security

Platform with embedded Intel components for long-term stability

Available for 4 to 6 years, assured spare parts availability for 5 years

Certifications for worldwide marketing (CE/ cULus/ KC)

Reduced costs due to time savings for commissioning, operation and servicing

High flexibility and expandability thanks to integrated interfaces and up to 6 PCI slots

Pre-installed and activated operating system

Fast restoration of delivery state using restore USB flash drive

Universal implementation as an industrial workstation or server

Hardware RAID 0, 1, 5, 10

2 x LAN 10/100/1000 Mbps connections

Remote maintenance with IPMI 2.0 technology

Design

Basic design

All-metal 19" enclosure (4 U) for high mechanical resilience (vibration/shock) and high EMC

Prepared for mounting of telescopic rails

Can be mounted horizontally

Lockable front door for authorized access (access protection) to removable data storage media on front, operator controls (Reset, Power), USB interface, front fan and dust filter

Front fan and dust filter can be replaced without tools

Dust protection filter by means of overpressure ventilation with bearing seated front fan

4 x 3.5" or 8 x 2.5" slots for SSD/HDD drives

Interfaces:

2 x Intel Gb Ethernet (RJ45)

1 x dedicated IPMI interface (RJ45)

4 x USB 3.0; 2 x on rear, 2 x on front, can be used with door closed

2 x USB 2.0: 2 x on rear

1 x COM1 serial interface (V.24), 9-pin D-sub connector

Onboard graphic VGA/2D controller 1920 × 1200@60Hz 32bp

Power supply: 100 ... 240 V AC, 50 ... 60 Hz; 860W or 2x 700W redundant

Equipment variants

Processor:

Intel? Xeon? SP Silver 4210 10C/ 20T - 2.2GHz/ 3.2GHz, 13.75 MB SmartCache, Turbo Boost 2.0, and virtualization (VT-x/-d) technology

Intel? Xeon? SP Silver 4216 16C/ 32T - 2.1GHz/ 3.2GHz, 22 MB SmartCache, Turbo Boost 2.0, and virtualization (VT-x/-d) technology

Intel? Xeon? SP Gold 6226 12C/ 24T - 2.7GHz/ 3.7GHz, 19.25 MB SmartCache, Turbo Boost 2.0, and virtualization (VT-x/-d) technology

Intel? Xeon? SP Gold 6230 20C/ 40T - 2.1GHz/ 3.9GHz, 19.25 MB SmartCache, Turbo Boost 2.0, and virtualization (VT-x/-d) technology

64 GB up to 2 TB DDR4-2933 MHz SDRAM ECC memory

6 free slots for expansions:

4 x PCI-Express x16 Gen 3

2 x PCI-Express x 8 Gen 3

Nvidia Quadro graphics card:

P620: 2 GB GDDR5; 512 CUDA cores; 4x mDP 1.4

RTX4000: 8 GB GDDR6; 2304 CUDA, 36 RT, 288 Tensor cores, 3x DP 1.4

RTX5000: 16 GB GDDR6 ECC; 3072 CUDA, 48 RT, 384 Tensor cores; 4x DP 1.4

Memory media:

4 TB & 8 TB HDD 3.5" SATA

960 GB & 3.8T bytes SSD 2.5" SATA

1 TB & 2 TB M.2 NVMe

4 x hard disks (HDD) SATA/SAS 3.5" or

8 x hard disks (HDD) SATA/SAS 2.5" or

8 x solid state drive (SSD) SATA 2.5" and

1x M.2 NVME

Supported RAID level with HW Raid: 0, 1, 1E, 5, 6, 10, 50, 60
